Steve Data Modeling: From Picklists To Infinity And Beyond

Introduction:

Welcome to another insightful session on data modeling with Steve’s Data Modeling series! In this blog, we will explore the versatile use of picklists and discuss scenarios where you might need to consider alternatives for more advanced data modeling requirements.

Understanding Picklists

Picklists are ideal when you have a field requiring a set of fixed values. They offer a clean user experience but come with some limitations:

Elevated admin rights are needed to add values.
New values must be deployed through sandboxes.

Data validation errors occur if values from third-party integrations aren’t pre-added in Salesforce.

Exploring Picklist Options

Here are some picklist options to consider:

Option 1: Global Value Sets

This is the standard Salesforce option and can leverage lists across objects.

Option 1, picklists and global value sets. Advantage: a clean user experience. Disadvantages: an admin must add values, changes need deploying to sandboxes, external systems cause problems, and a value can't hold related fields

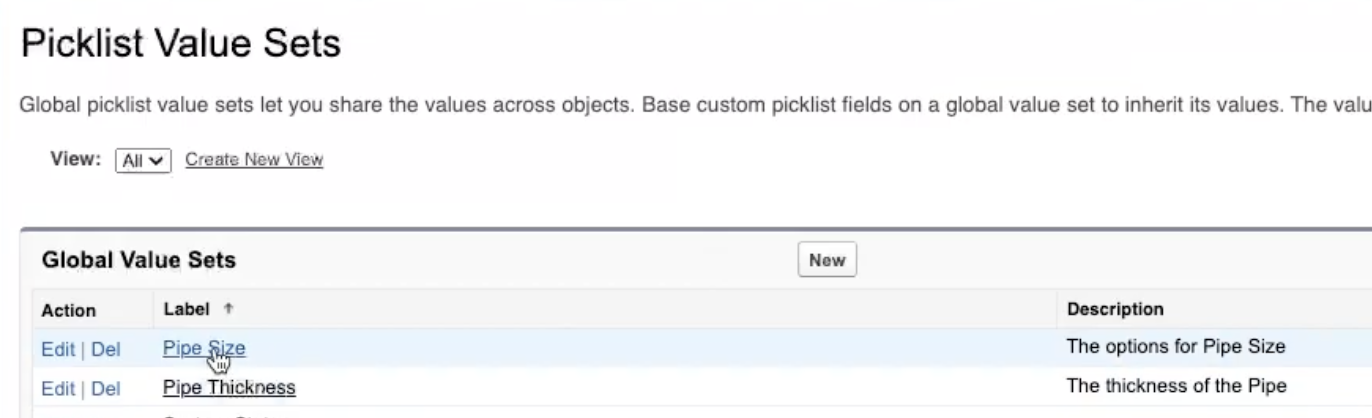

Global value sets are best for values used in multiple places. For instance, you can have two global value sets for ‘pipe size’ and ‘pipe thickness’, providing a clean UI for users to select values.

[caption id="" align=“alignnone” width=“1372”] Sample Value Sets [/caption] [caption id="" align=“alignnone” width=“1814”] Sample Values [/caption] [caption id="" align=“alignnone” width=“676”] Choosing from a list [/caption]

Option 2: Text Fields

This is just a text field with no validation.

Option 2, text fields. Advantage: they take any value. Disadvantages: no data validation and a poor user experience

If data values are pushed through integrations, you might consider using text fields. However, this approach loses validation, allowing users to input any data, which might lead to inconsistency.

This might be an option if the fields are read only in Salesforce and you are just displaying the values.

[caption id="" align=“alignnone” width=“678”] No validation [/caption]

Option 3: Shared Reference Object

Option 3, a shared reference object with record types, with lookups filtered by record type. Advantages: data added dynamically and some related fields. Disadvantages: data loads in sandboxes, and the source object holds a key rather than the value

A shared reference object with multiple record types can be used for data loads. This approach creates two lookups on the primary object, linking to the reference object instead of actual values. You can also add new values dynamically without admin rights, enhancing flexibility.

[caption id="" align=“alignnone” width=“1462”] Using Record Types [/caption] [caption id="" align=“alignnone” width=“1700”] Use a filtered lookup [/caption] [caption id="" align=“alignnone” width=“1434”] Adding Values [/caption] [caption id="" align=“alignnone” width=“658”] What selecting a value looks like. Sorting is not correct and it does not show all values at initial load, the user has to search for them. Also, make sure you remove “Create” from Profiles/Permission Sets so the users do not create more records on the fly. [/caption]

Section 3: Advanced Options

For more advanced scenarios, consider these options:

Option 4: Custom Screens with Reference Object

Option 4, a reference object plus a text field, with a Lightning web component that reads the picklist values from the reference object. Advantages: data added dynamically and the source object keeps the values. Disadvantage: needs LWC development and custom pages

If you’re using custom Lightning Web Components (LWCs) for your edit screens, you can use a reference object to read values and render them, storing the actual values instead of lookups.

Option 5: Standalone Objects

Option 5, standalone reference objects, one per list. Advantages: data added dynamically, a clean data model and many related fields. Disadvantages: data loads in sandboxes, keys rather than values, and many objects

If lookup values grow in importance, consider creating standalone objects for each and creating separate lookups. This approach allows dynamic data addition, maintains a clean data model, and supports additional related fields on each object.

Practical Examples

Here are practical examples to illustrate each option:

Standard Picklists: Offers a clean UI with fixed values.

Text Fields without Validation: Provides flexibility but no data validation.

Lookup to Reference Objects: Uses the same object with filtered record types for flexibility.

Standalone Objects: Uses separate objects for each lookup, offering a clean and flexible data model.

Conclusion

Understanding the nuances of picklists and their alternatives is crucial for effective data modeling. From standard picklists to standalone objects, each option offers unique benefits to meet specific data modeling needs.
